Керамический мембранный модуль

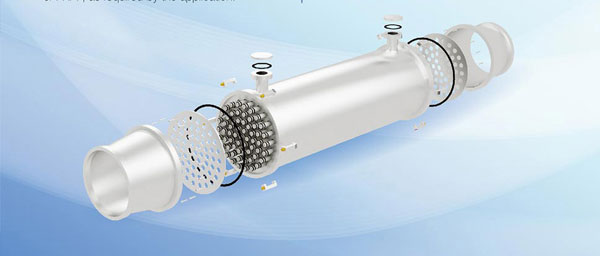

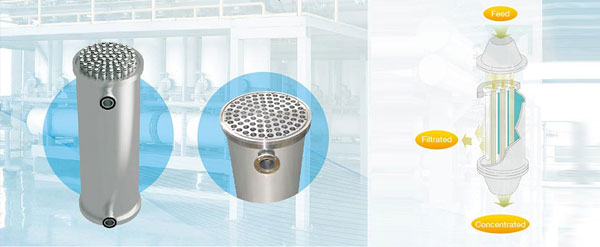

Керамический мембранный модуль представляет собой полный блок, состоящий изКерамические мембраны, Корпус, вход питания, выход концентрата и выход пермеата. Керамические мембраны расположены параллельно и сосуд с корпусами.

JIUWU Керамический мембранный модуль Продукты

Корпус разработан со стандартными разъемами (фланец, зажим, завиток) для крепления к входящему и исходящему трубопроводу. Это включает в себя коллектор, который направляет входящий поток ко всем керамическим мембранным элементам в корпусе. Снабжение жилищем произведены от разных видов нержавеющей стали, покрытой стали или пластмассы, титана, как требуется применением. Уплотнительный материал удерживает элементы в самом слабом месте в корпусах. Широкий спектр материалов (EPDM, фторкаучук, кремний) доступен по потребностям клиента.

Характеристика корпусов

Количество нагружающих мембранных элементов: 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 шт.
Соответствующая длина мембранного элемента Диаметр: 500, 1000, 1200 мм/диаметр: 25, 30, 40 мм
Основной материал корпуса: SUS304 (L), SUS316 (L), титан, углеродистая сталь с резиной, ПВХ, FRPP
Уплотнительный материал: EPDM, фторкаучук, кремний, ПТФЭ,
Интерфейс: фланец, зажим, муфта Whorl
Уровень давления: 0-1,0 МПа, 0-1,6 МПа, 0-2,5 МПа, 0-4,0 МПа
Стандарт: ИСО, ДИН/чемикал ранг, санитарная ранг

Мембранный тип		Мембранная площадь (м²)
OD (мм)	Номер канала	Количество мембран на модуль
OD (мм)	Номер канала	1	3	7	19	37	61	91
25	19	0,23	0,69	1,61	4,37	8,51	14,03	20,93
30	7	0,15	0,45	1,05	2,85	5,55	9,15	13,65
	19	0,29	0,87	2,03	5,51	10,73	17,69	26,39
	37	0,37	1,11	2,59	7,03	13,69	22,57	33,67
	61	0,5	1,5	3,5	9,5	18,5	30,5	45,5
40	19	0,43	1,29	3,01	8,17	15,91	26,23	39,13
	37	0,5	1,5	3,5	9,5	18,5	30,5	45,5
	61	0,57	1,71	3,99	10,83	21,09	34,77	51,87
	91	0,68	2,04	4,76	12,92	25,16	41,48	61,88

Мембранная технология
